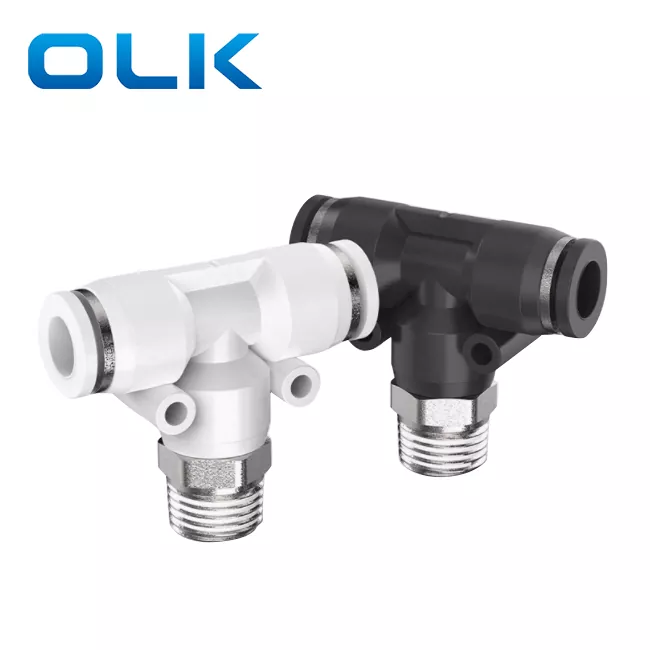

PB Branch Tee push tube egokitzen

Agindu kodea

Ere

8

-

01

Eredu

Hodiaren tamaina (metrika)

Hari mota (55 ° Tube zuzeneko haria)

PB serieak egokitzea

4: 4mm

01: G1 / 8

6: 6mm

02: G1 / 4

8: 8mm

03: G3 / 8

10: 10mm

04: G1 / 2

12: 12mm

14: 14mm

16: 16mm

Fluido

Airea / Ura (Baldintzapean) / hutsean

Eragiketa presioa

0-1.0MPA

Presio hutsean

-100kpa (10 Torr)

Funtzionamendu tenperatura

-10-60 ℃

Material

Nylon (pa), poliuretanoa (Pu)

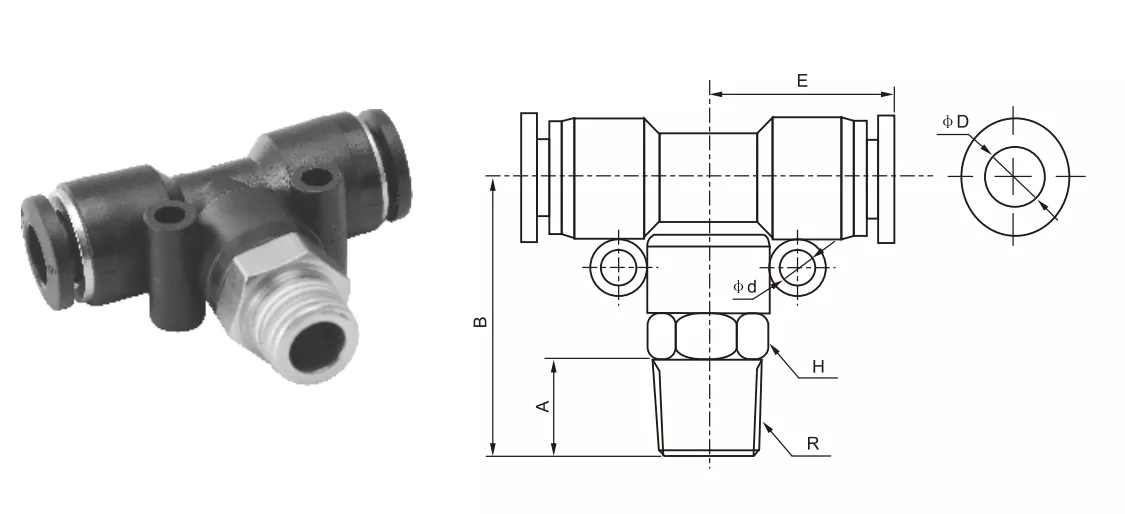

Hazbeteko hodia egokitzea

Metri Tube egokitzea

φd

R

A

B

E

-

φd

PB5 / 32-M5

PB4-M5

4

M m

4.5

25.4

18.6

10

/

PB5 / 32-01

Pb4-01

4

R1 / 8

7

25.4

18.6

10

/

PB5/32-02

PB4-02

4

R1 / 4

9

27.8

18.6

14

/

PB1 / 4-M5

PB6-M5

6

M m

4.5

26.8

20.8

12

3.5

PB1 / 4-01

PB6-01

6

R1 / 8

6.5

37.6

20.8

12

3.5

PB1 / 4-02

PB6-02

6

R1 / 4

9

30

20.8

14

3.5

PB1 / 4-03

PB6-03

6

R3 / 8

10

30.6

20.8

17

3.5

PB1 / 4-04

PB6-04

6

R1 / 2

10

32.5

20.8

21

3.5

PB5 / 16-01

PB8-01

8

R1 / 8

8

31.5

22.9

14

4.5

Pb5 / 16-02

PB8-02

8

R1 / 4

10

33

22.9

14

4.5

PB5 / 16-03

PB8-03

8

R3 / 8

10

33.6

22.9

17

4.5

Pb5 / 16-04

PB8-04

8

R1 / 2

11

35

22.9

21

4.5

PB3 / 8-01

PB10-01

10

R1 / 8

8

37

27.8

17

4

PB3 / 8-02

PB10-02

10

R1 / 4

10

38

27.8

17

4

PB3 / 8-03

PB10-03

10

R3 / 8

10

38

27.8

17

4.5

PB3 / 8-04

PB10-04

10

R1 / 2

11

39

27.8

21

4.5

PB1 / 2-01

PB12-01

12

R1 / 8

8

37.5

29.5

19

5

PB1 / 2-02

PB12-02

12

R1 / 4

10

40

29.5

19

5

PB1 / 2-03

PB12-03

12

R3 / 8

10

40

29.5

19

5

PB1 / 2-04

PB12-04

12

R1 / 2

11

41

29.5

21

5

PB14-03

16

R3 / 8

11

46.3

34.5

24

4

PB14-04

16

R1 / 2

12

47.3

34.5

27

4

Izena / mota

Interfazearen egitura deskribapena

Run Tee (PD)

Aire-fluxu nagusia zuzena da, eta adarrak bertikalki ateratzen dira

Adarra tee (PB)

Bi interfaze lotuta daude angelu zuzenetan, "T" adarrean

Berdina kamiseta

Tamaina bereko hiru portu
